[User Discussion] - color bars based on moving average cross
View Count: 1916
| [2015-10-23 16:34:19] |
| User66360 - Posts: 81 |
|
I am trying to create something the colors the bars red below a specific moving average cross and green if above the cross? I cant seem to find how to do this. Thanks for any help. the moving averages used are HLC avg 4 period and a 7 period. |
| [2015-10-23 19:25:25] |
| Sawtooth - Posts: 4173 |
|
Use two instances of the Color Bar Based On Alert Condition study, one for each color, with these formulas on the respective Alerts tab: Green: =ID1.SG1>ID2.SG1 Red: =ID1.SG1<ID2.SG1 where the faster MA is ID1 and the slower MA is ID2. Edit as needed. |
| [2016-01-28 15:50:17] |
| User66360 - Posts: 81 |
|
I did this just as described and it is only using one color?
|
| [2016-01-28 15:59:09] |
| Sawtooth - Posts: 4173 |
|
Did you set the colors of each Color Bar study?
|
| [2016-01-28 16:07:47] |
| User66360 - Posts: 81 |
|
Yes I did that. they were all green, then I added the second study you said and made it red. I guess the red took over the green , and all was red?
|
| [2016-01-28 16:28:52] |
| Sawtooth - Posts: 4173 |
|

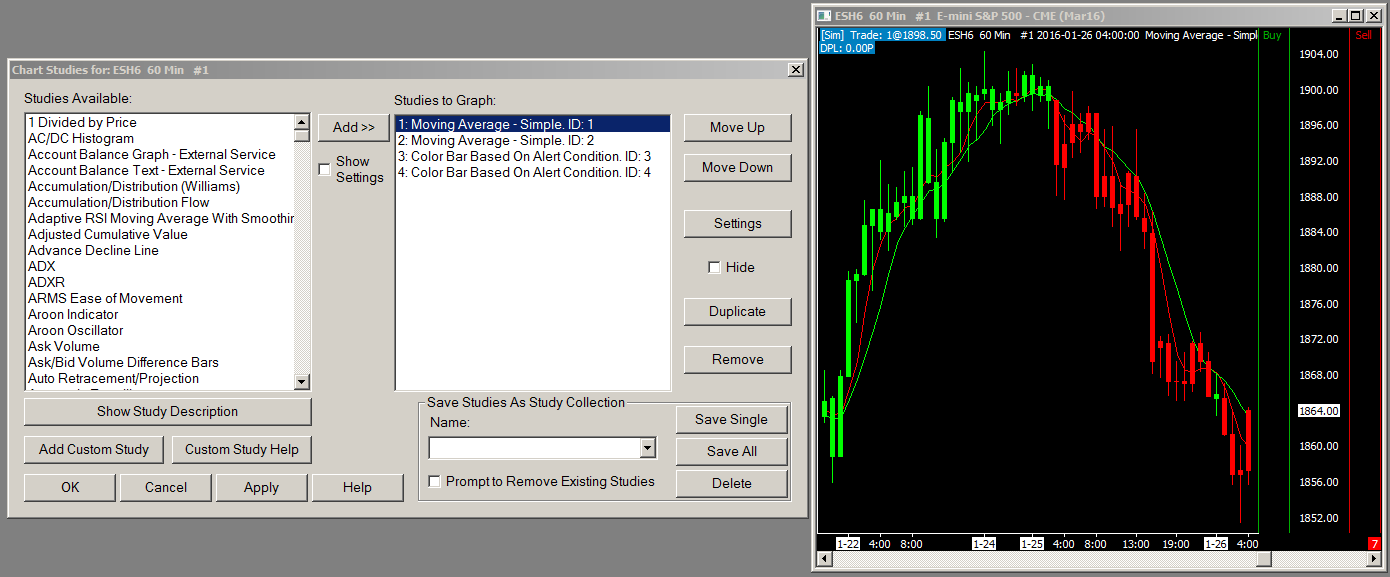

Are you using a different formula in each Color Bar study? It works for me. See pic. |
 User66360.PNG / V - Attached On 2016-01-28 16:28:05 UTC - Size: 78.45 KB - 537 views |
| [2016-01-28 16:39:55] |
| User66360 - Posts: 81 |
|
it worked! im not sure what i changed but I got it! thanks!
|
