[User Discussion] - Tick dots on chart
View Count: 2486
| [2015-06-11 14:33:33] |
| Rob_2560 - Posts: 20 |
|

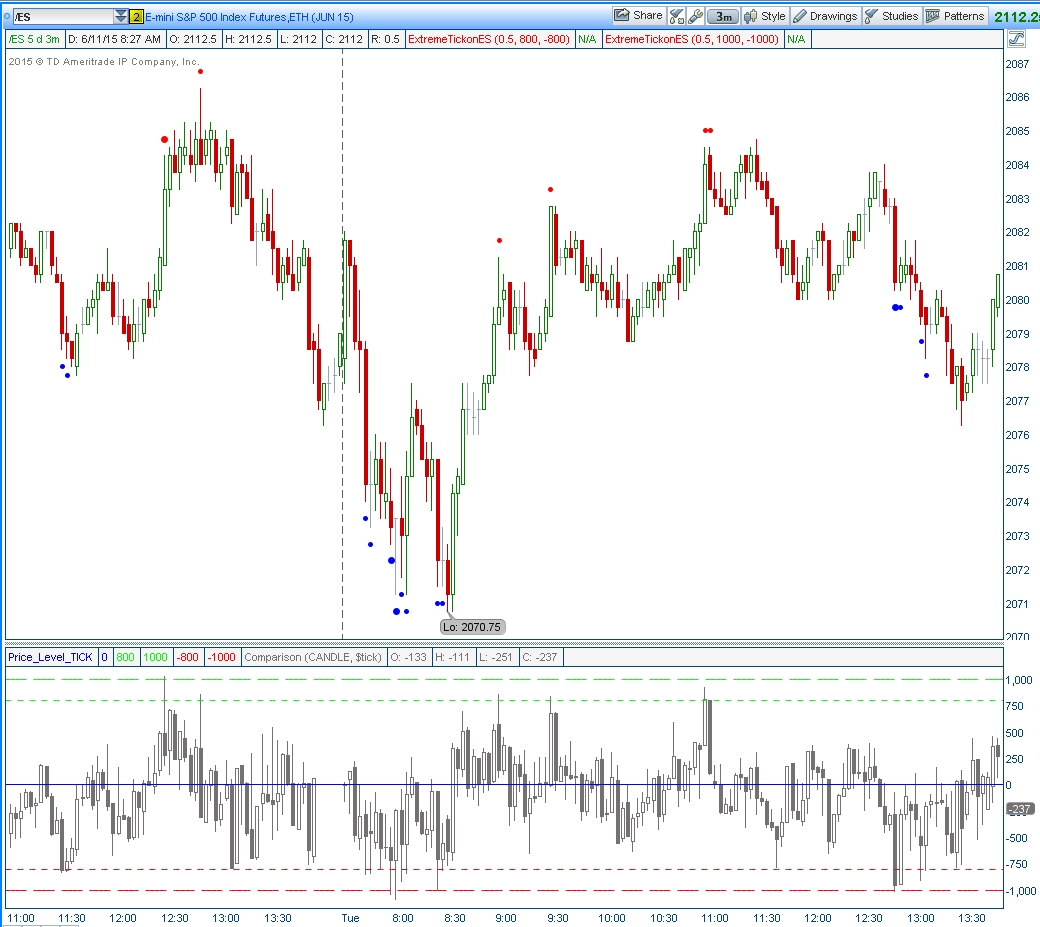

I need help with a study for plotting where extreme ticks are on the chart. I know I can overly the tick below my chart but what I want is just to plot extreme moves on my chart such as +800, +1,000 ... etc. I have this coded in thinkorswim but now am looking to code it into Sierra. See attached screenshot from thinkorswim for what I am hoping this to look like. A dot gets plotted when the Tick goes to an extreme level. The more extreme the level the larger the dot. Any help would be appreciated. input dotOffset = 1.0; input HighThreshold = 1000; input LowThreshold = -1000; def tickDataLow = low("$TICK"); def tickDataHigh = high("$TICK"); def tickClose = close("$TICK"); def isLow = If((tickDataLow < LowThreshold), 1, 0); def isHigh = If((tickDataHigh > HighThreshold), 1, 0); def plotcolor = If(isLow, 6, 5); plot TickDot = If(isLow and !isHigh, low - dotOffset, If(isHigh and !isLow , high + dotOffset, Double.NaN)); TickDot.SetStyle(Curve.POINTS); TickDot.AssignValueColor(GetColor(plotcolor)); TickDot.SetLineWeight(3); AddLabel(isHigh, Concat("High Tick = ", If(isHigh > 0, tickDataHigh, 0)), Color.GREEN); AddLabel(isLow, Concat("Low Tick = ", If(isLow > 0, tickDataLow, 0)), Color.DOWNTICK); |
| [2015-06-22 03:57:07] |
| Rob_2560 - Posts: 20 |
|
Anyone have anything similar to this in terms of plotting another indicator over a price chart? What I need is for when the tick is > 1,000 or 800 it would plot a dot on my chart offset from the bar. Any help would be appreciated. Thanks |
| [2015-06-23 06:39:05] |
| Bedhog - Posts: 179 |
|

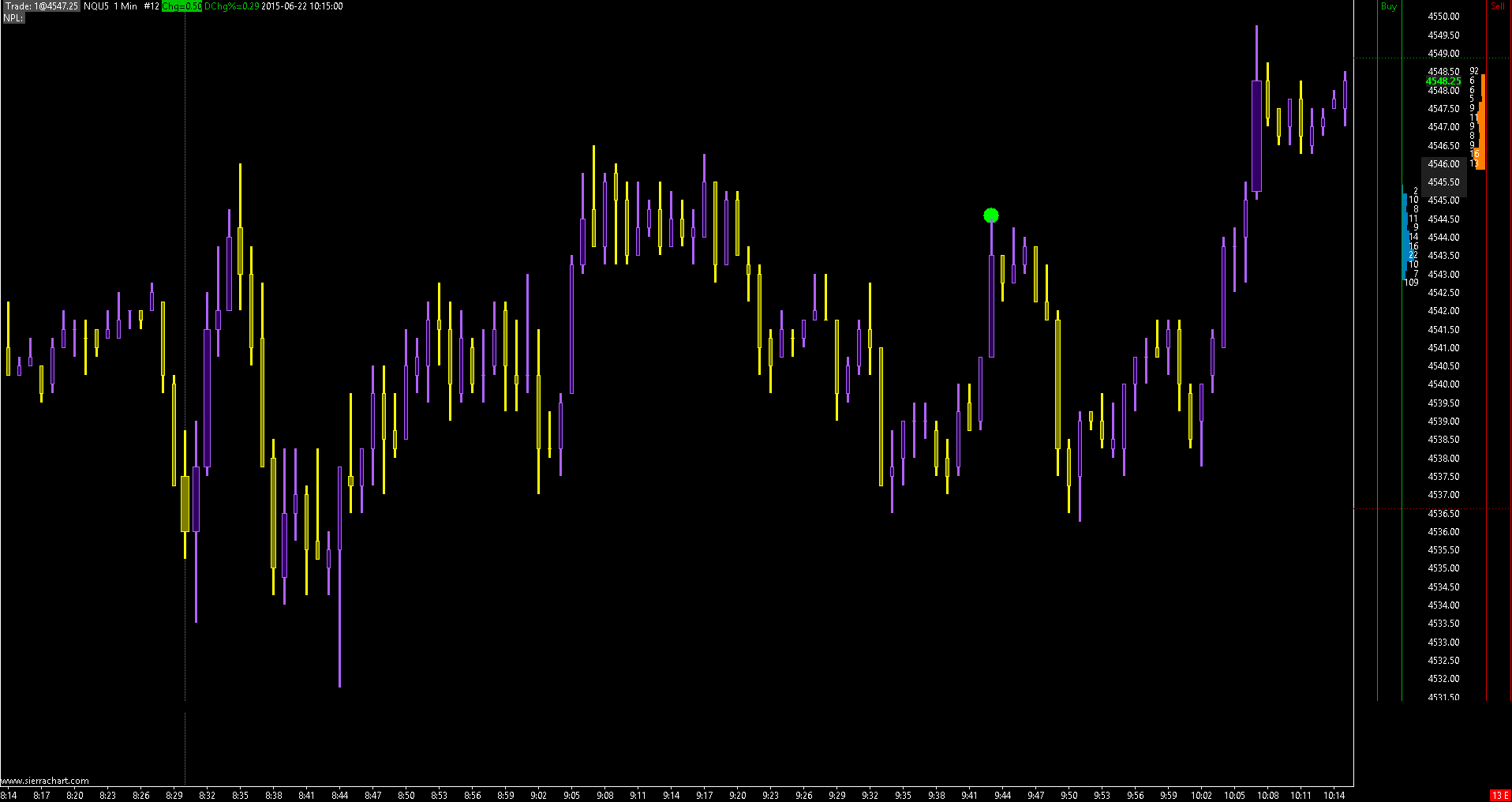

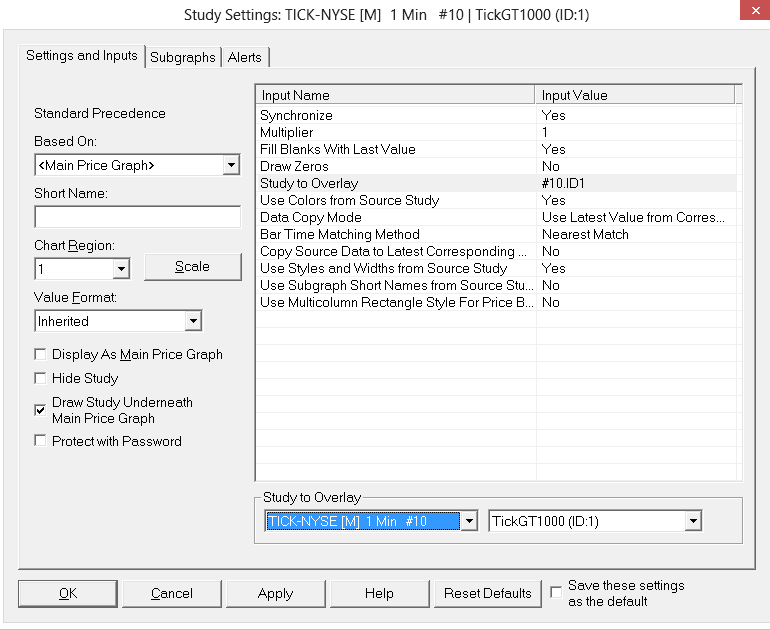

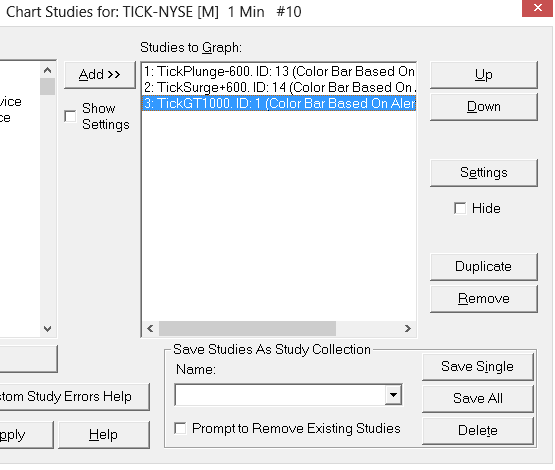

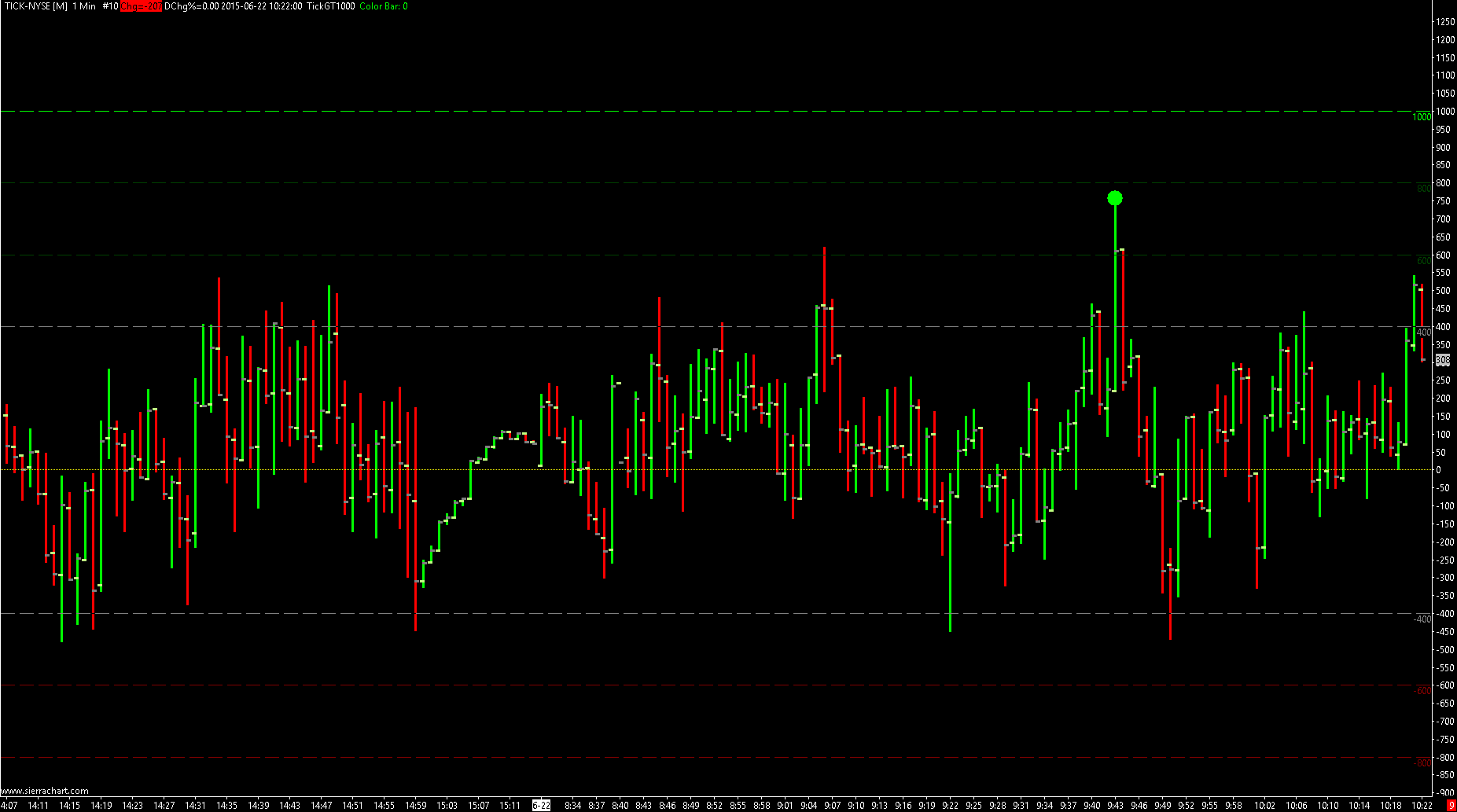

Create a chart with TICK-NYSE Make a note of the Chart Number (Press F5, # in the title bar) e.g. #10 Add Study: Color Bar Based on Alert Condition Settings and Inputs Tab: Short Name = TickGT1000 (this is just a label for you) Subgraphs Tab: Choose a Color; Draw Style=Point on High; Width/Size=11 (so you can see it quickly) Alerts Tab: Alert Condition= '=c>1000' (without the ' ) Make a note of the ID e.g. ID:1 On your symbol chart (ES, YM, NQ) Add Study: Study/Price Overlay Settings and Inputs: Study to Overlay; #10; TickGT1000 (ID:1) Done. In my images, the setting was used to print a green dot if the TICK-NYSE close was greater than 600. If you want the high of the bar instead of the close use '=h>1000' Date Time Of Last Edit: 2015-06-23 06:40:32
|
 TICK-NYSE [M] 1 Min #10 2015-06-23 01_33_54.922.png / V - Attached On 2015-06-23 06:35:21 UTC - Size: 90.66 KB - 567 views NQU5 1 Min #12 2015-06-23 01_33_58.782.png / V - Attached On 2015-06-23 06:35:33 UTC - Size: 78.81 KB - 504 views Capture.PNG / V - Attached On 2015-06-23 06:37:17 UTC - Size: 14.37 KB - 523 views Capture.PNG / V - Attached On 2015-06-23 06:37:58 UTC - Size: 6.56 KB - 474 views Capture.PNG / V - Attached On 2015-06-23 06:38:50 UTC - Size: 25.82 KB - 446 views |
| [2015-06-25 03:10:38] |
| Rob_2560 - Posts: 20 |
|
This is so great! Thank you so much bedhog! |
| [2017-01-21 17:15:30] |
| User188637 - Posts: 2 |
|
This was very helpful - THANKS!
|
| [2020-11-16 03:27:47] |
| User115740 - Posts: 12 |
|
Did this stop working? I tried putting it in today into a few different locations and can't seem to get it going.
|
