[2015-05-01 13:31:38] #1 [Go To First Post]
User66746 - Posts: 15
Hello everybody i'm novice in language C++ and I don't find in ACSIL Interface Members the functions for display Ask volume, Bid volume, Delta volume,... in NumericInformationGraphDraw. My code source is based on the study 7 - NumericInformationGraphDrawTypeConfig in attachment. Thank you, best regards.

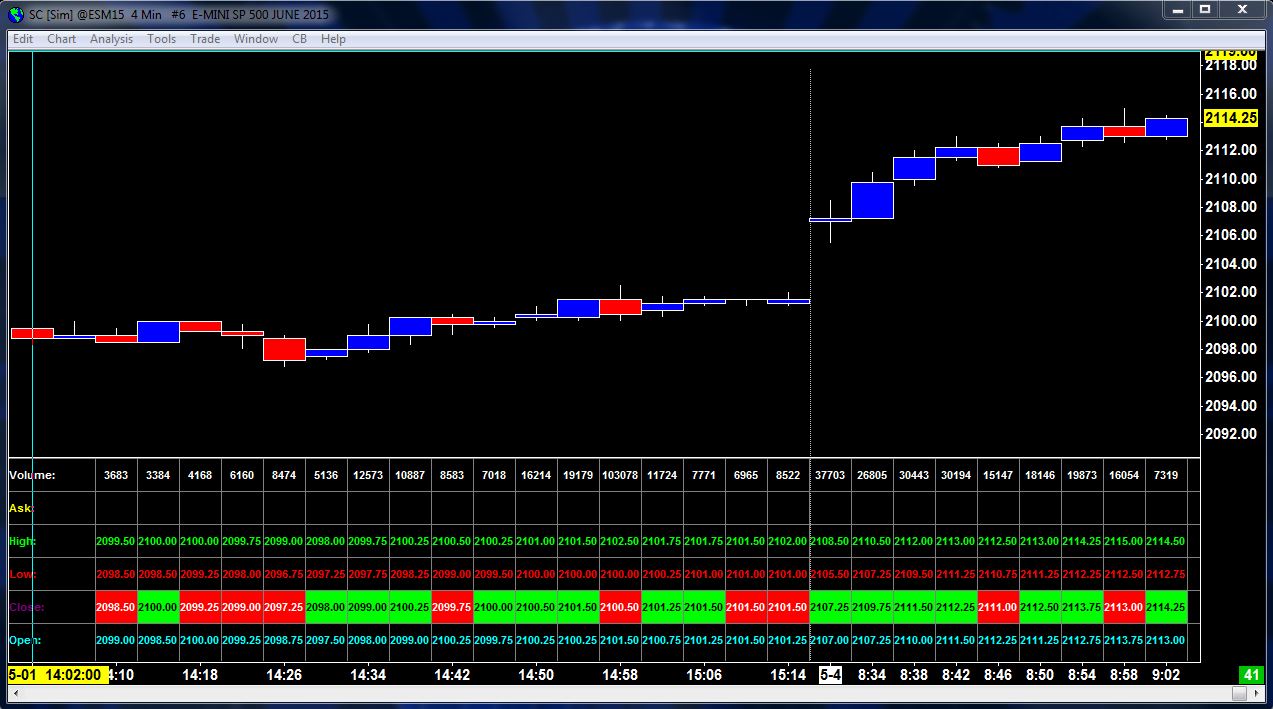

Scan.JPG / V - Attached On 2015-05-01 13:30:03 UTC - Size: 169.37 KB - 413 views NumericInformationGraphDrawTypeConfig.txt - Attached On 2015-05-01 13:30:23 UTC - Size: 2.72 KB - 526 views

[2015-05-01 18:20:45] #2 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Ask Volume and Bid Volume are sc.BaseData members: https://www.sierrachart.com/index.php?page=doc/doc_ACSIL_Members_Variables_And_Arrays.html#scBaseDataIn You can easily calculate the difference between the two. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-01 18:25:29] #3 [Go To First Post]
User66746 - Posts: 15
ok I try thanks you

[2015-05-04 14:12:21] #4 [Go To First Post]
User66746 - Posts: 15
Hello, it doesn't work, my line Ask is empty, I don't understand my error, could you help me help please.

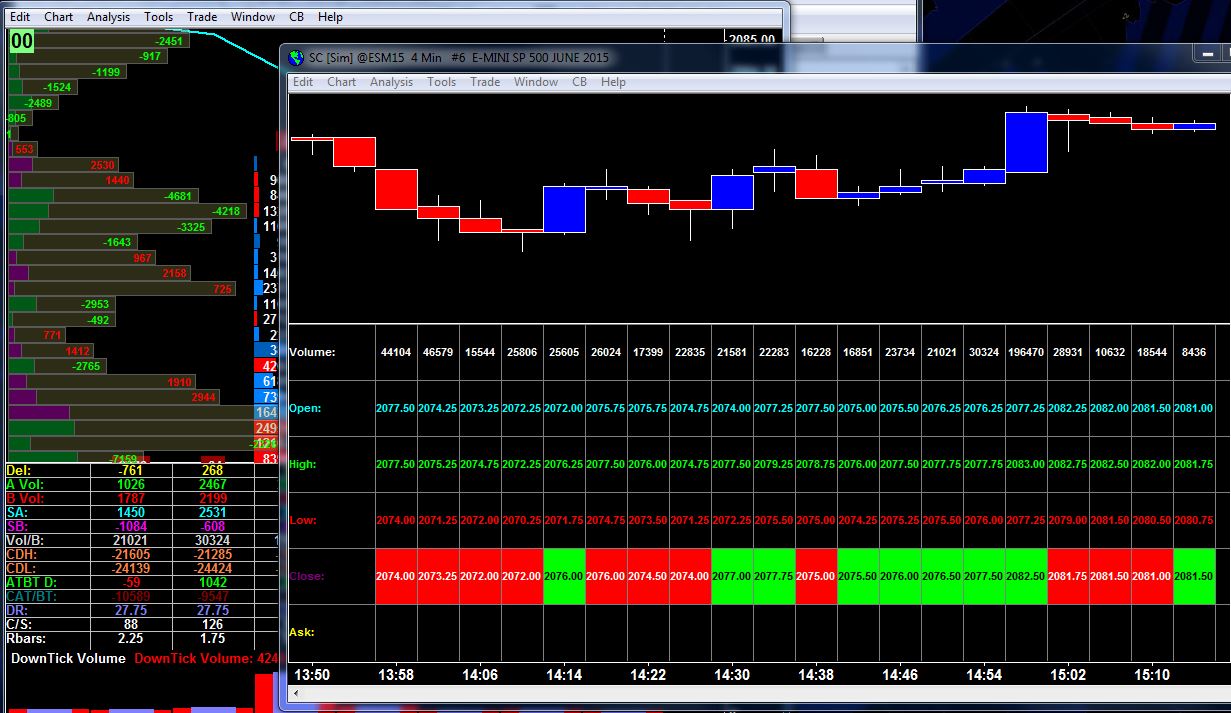

scan1.JPG / V - Attached On 2015-05-04 14:12:07 UTC - Size: 150.61 KB - 376 views Source Code.txt - Attached On 2015-05-04 14:12:12 UTC - Size: 2.21 KB - 403 views

[2015-05-04 17:11:09] #5 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
This is because the Ask Subgraph is not set to anything. You need a line like this: Ask[sc.Index]= Value; Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-04 17:16:55] #6 [Go To First Post]
User66746 - Posts: 15
thank for answer but when build sierra write: " A:\SierraChart\ACS_Source\aTestcode.cpp: In function 'void scsf_NumericNumber(SCStudyInterfaceRef)': A:\SierraChart\ACS_Source\aTestcode.cpp:67:18: error: 'Value' was not declared in this scope Ask[sc.Index]= Value; " best regards

[2015-05-04 17:32:32] #7 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Yes, this is expected. The Value variable we specified is just an example variable. You will have to assign the value that you want. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-04 17:40:55] #8 [Go To First Post]
User66746 - Posts: 15
OK but which value?, I'm sorry I'm hopeless ^_^

[2015-05-04 18:10:36] #9 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
We would not know the answer to this because we do not know what you want to do exactly. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-04 18:12:28] #10 [Go To First Post]
User66746 - Posts: 15
I want just display the ask volume for the moment.

[2015-05-04 21:50:17] #11 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Therefore, use this: Ask[sc.Index]= sc.BaseData[SC_ASKVOL][sc.Index] Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-05 07:22:29] #12 [Go To First Post]
User66746 - Posts: 15

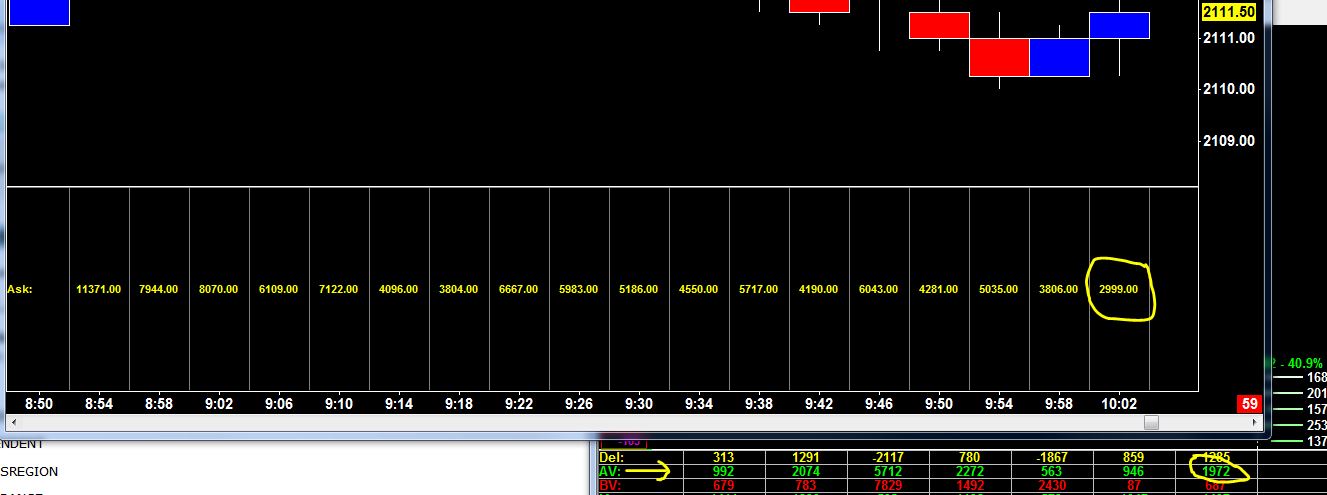

Thank it's Almost ready but I have a différence between the 2 value in my scan. Best regards Date Time Of Last Edit: 2015-05-05 07:23:02


scan.JPG / V - Attached On 2015-05-05 07:22:56 UTC - Size: 82.1 KB - 393 views

[2015-05-05 14:45:02] #13 [Go To First Post]
User66746 - Posts: 15
ok i'm sorry is find my error thank you so much!

[2015-05-05 16:29:13] #14 [Go To First Post]
User66746 - Posts: 15
Just last question, how do you calculted 2 variable? I want to subtract Down tick volume - Bid volume in example: Deltaupdowntick[sc.index]= (DownTickVolume[sc.Index] - Bid[sc.Index]); is correct?? thank you best regards

[2015-05-05 18:06:45] #15 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Deltaupdowntick[sc.Index]= (DownTickVolume[sc.Index] - sc.BaseData[SC_BIDVOL][sc.Index] ) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2015-05-05 18:07:19

[2015-05-05 18:14:06] #16 [Go To First Post]
User66746 - Posts: 15
A:\SierraChart\ACS_Source\aTestcode.cpp: In function 'void scsf_NumericNumber(SCStudyInterfaceRef)': A:\SierraChart\ACS_Source\aTestcode.cpp:95:22: error: 'struct s_sc' has no member named 'index' Deltaupdowntick[sc.index]= (DownTickVolume[sc.Index] - sc.BaseData[SC_BIDVOL][sc.Index] ) ^ A:\SierraChart\ACS_Source\aTestcode.cpp:100:2: error: expected ';' before 'if' if (Close[sc.Index] > Close[sc.Index-1]) ^ A:\SierraChart\ACS_Source\aTestcode.cpp:102:2: error: 'else' without a previous 'if' else and I try " Deltaupdowntick[sc.index]= (sc.BaseData[SC_DOWNVOL][sc.Index] - sc.BaseData[SC_BIDVOL][sc.Index] )" but it's not correct. sorry and thank you for your help.

[2015-05-06 04:56:57] #17 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
You need to use sc.Index This is case sensitive. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-05-06 13:41:32] #18 [Go To First Post]
User66746 - Posts: 15
Thank you it's perfect ! byebye.
