Post From: Continuous print and clustering like Bookmap?
| [2024-05-22 03:48:57] |
| Mattx - Posts: 12 |
|
I'm trying to create a chart similar to Bookmap. I believe I already achieved a pretty similar tool, except for two things. Please let me know if it's somehow possible. 1. Bookmap prints a line (bid/ask) even if there's no volume at a given bar. The line is printed continuously, so you can see how the bid/ask changed over time when there are no dots. I tried with a bar period of less than 100ms and enabled "do not draw columns with no data" and "include columns with no data" (both yes). However, I couldn't find a way to get the chart updated when there's no volume at all. Can this be done, or the best we can do is print all empty bars only when a new bar with volume is reached? 2. Regarding the "large volume trade indicator" is it possible to sum the volume and print together small dots (i.e. clustering)? I've attached two screenshoots to illustrate my points. Date Time Of Last Edit: 2024-05-22 03:54:55
|

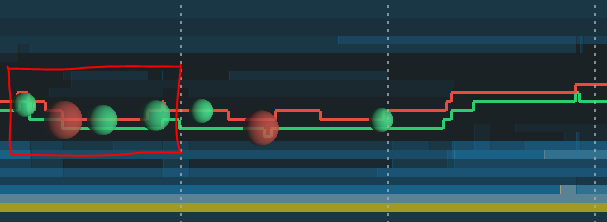

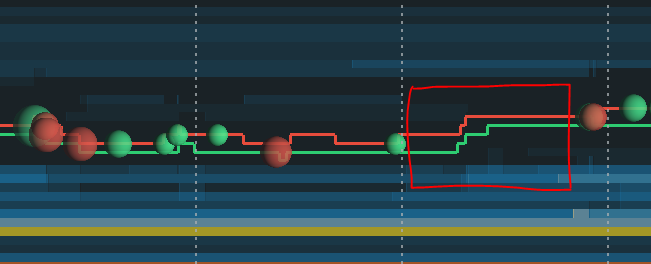

 Bookmap_1.PNG / V - Attached On 2024-05-22 03:54:08 UTC - Size: 19.63 KB - 97 views Bookmap_2.PNG / V - Attached On 2024-05-22 03:54:11 UTC - Size: 15.39 KB - 98 views |
