Point of Control (Footprint)
View Count: 188
| [2024-11-23 14:18:20] |
| User760022 - Posts: 11 |
|
Hello, I'd like to add the Point of Control on my Footprint Chart ($ES)(5mins Chart). I was wondering if you could help me figure that out/input the setting for POC. Thank you very much. Regards Haseeb |
| [2024-11-25 14:25:36] |
| John - SC Support - Posts: 36873 |
|
Refer to the following: Numbers Bars: Highlight Point Of Control In Or you could use a different study, such as the "Volume Point of Control for Bars". Refer to the following: Volume Point of Control for Bars For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-11-30 14:07:49] |
| User760022 - Posts: 11 |
|
Hello, I have activated but for some reason I don't see any POC on each bar. I was wondering if you could help. Thanks/Regards Haseeb |

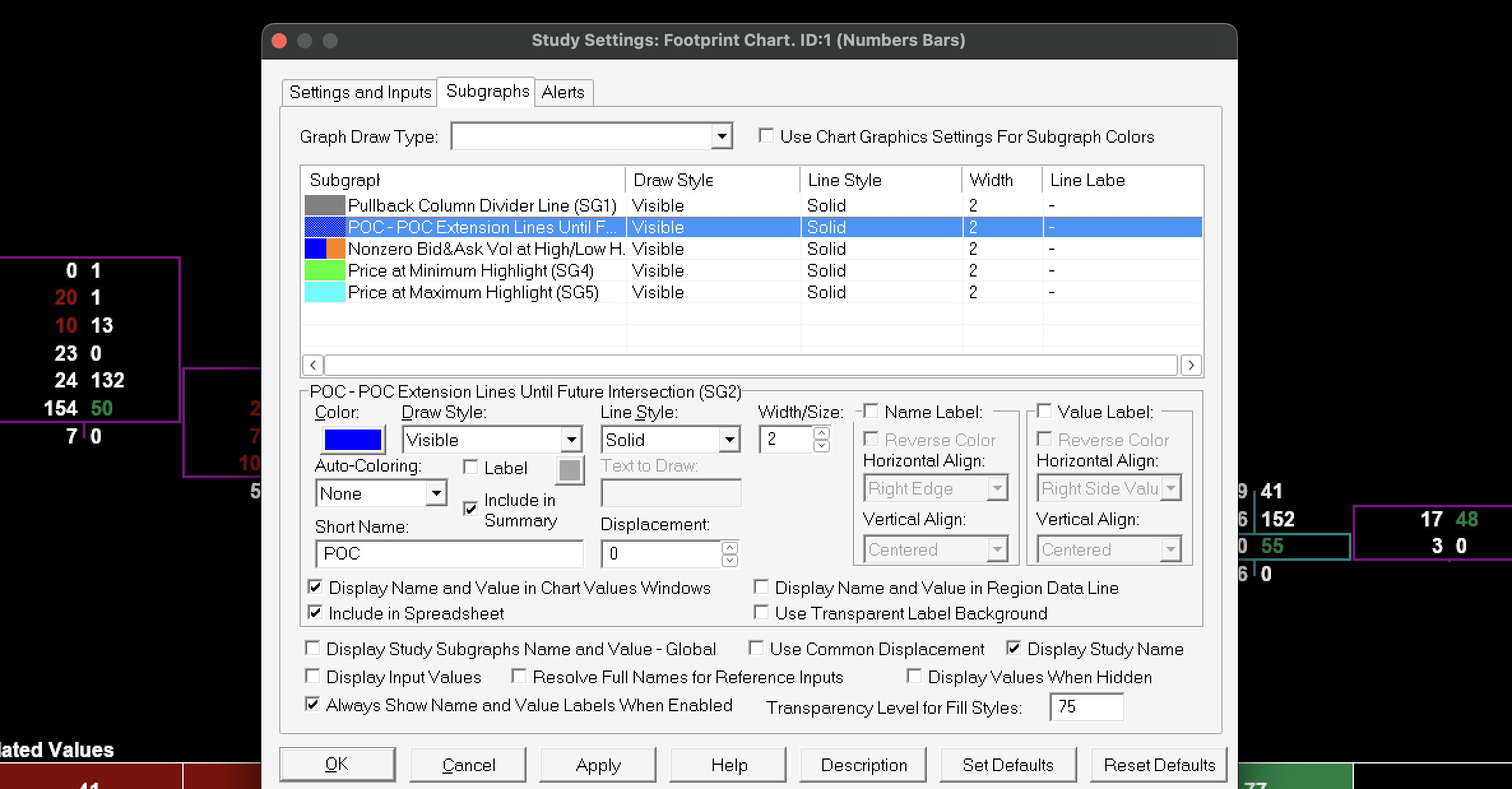

 Screenshot 2024-11-30 at 9.06.42 AM.png / V - Attached On 2024-11-30 14:06:57 UTC - Size: 177.3 KB - 35 views |
| [2024-11-30 18:36:31] |
| Sierra_Chart Engineering - Posts: 17672 |
|
We need to know exactly how these inputs are set: Numbers Bars: Highlight Point Of Control In Numbers Bars: Point Of Control Highlight Color Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-12-03 01:11:55] |
| User760022 - Posts: 11 |
|
I have attached a screenshot. Let me know, if you are able to see it. ' Thank you very much Haseeb |

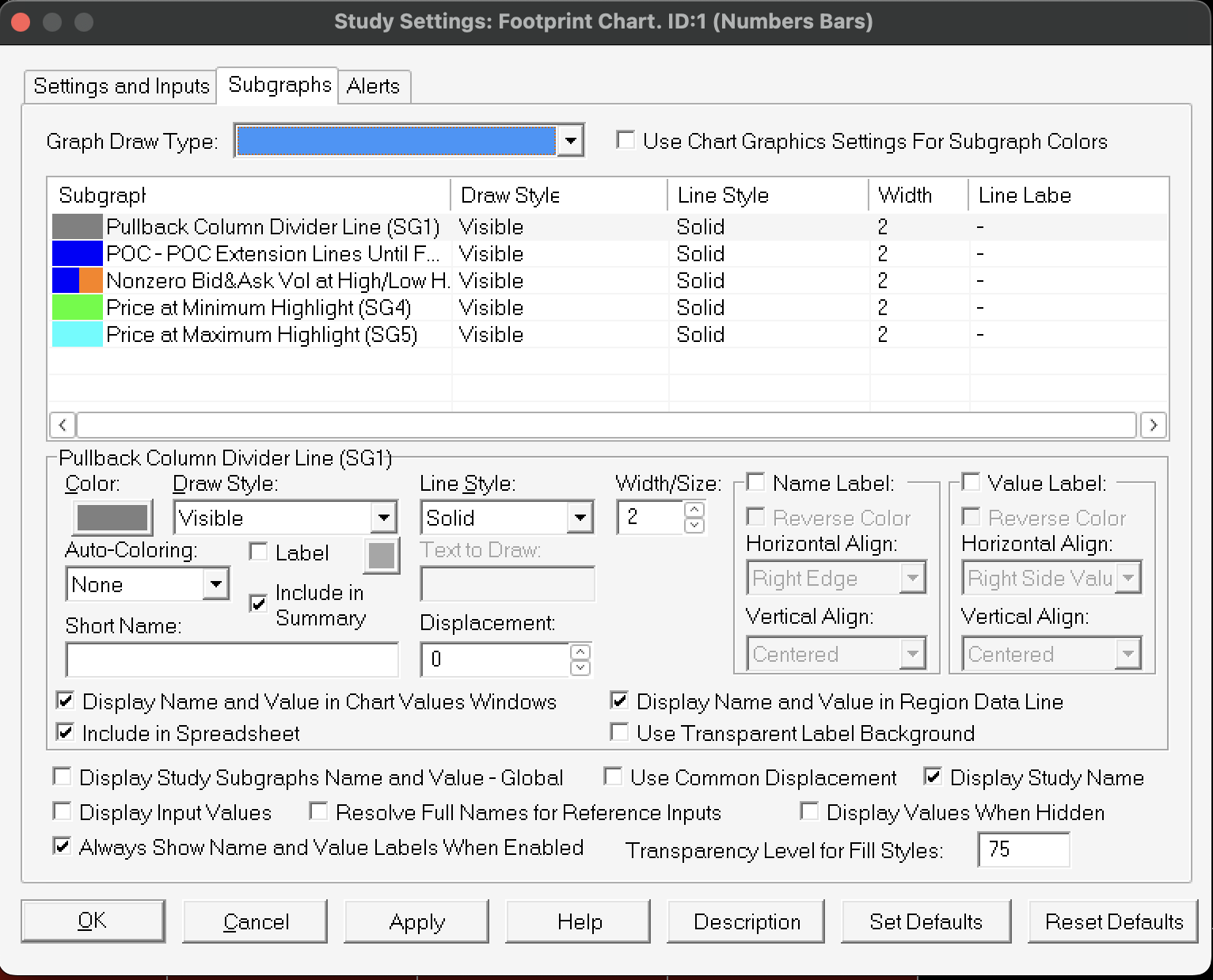

| Screenshot 2024-12-02 at 8.10.56 PM.png / V - Attached On 2024-12-03 01:11:11 UTC - Size: 257.78 KB - 20 views |
| [2024-12-03 03:58:37] |
| User688525 - Posts: 273 |
|
Go to the Numbers Bars "Settings and Inputs" tab and scroll down about halfway to the Point Of Control options (Highlight Point Of Control, Point Of Control Highlight Color, Point Of Control Highlight Width). Make sure these options are configured correctly.
|
| [2024-12-03 13:15:32] |
| User760022 - Posts: 11 |
|
I am all set. I want to really thank you for your help on this. I really appreciate it and love using Sierra Chart (Footprint). Thanks/Regards Haseeb🥂 |
