[User Discussion] - dot on candle doing new high or low
View Count: 1908
| [2013-11-26 22:40:03] |
| TradingMarketProfile - Posts: 120 |
|
Hello i would like to know if it's possible to get a dot or whatever on every candle making new high or low.. I use Daily OHLC single point in a chart, this is ok but it's only for high or low of the day so only once.. Thanks |
| [2013-11-26 23:52:51] |
| Sawtooth - Posts: 4120 |
|
The Daily OHLC Single Point study does give you a marker on every new high or low. What you might want is the Daily OHLC study with 'Graph High and Low Historically' set to Yes. |
| [2013-11-27 10:10:32] |
| TradingMarketProfile - Posts: 120 |
|
in fact what i would like is like on the chrt (see picture)
|
| [2013-11-27 14:45:12] |
| Sawtooth - Posts: 4120 |
|
This can be done with two instances of the Color Bar Based On Alert Condition study, and a hidden Daily OHLC study. 1) Add the Daily OHLC study. -Check Hide Study -Set the Reference Days Back to 0 -Set the Graph High and Low Historically to Yes 2) Add two instances of the Color Bar Based On Alert Condition study. -Set the Output When Condition True to Use Input Data -Set the Input Data to High in one instance and Low in the other -Choose the Draw Style and Colors -Put these formulas in the Alerts tab: -High formula: =OR(ID1.SG2>ID1.SG2[-1],BARDATE>BARDATE[-1]) -Low formula: =OR(ID1.SG3<ID1.SG3[-1],BARDATE>BARDATE[-1]) This assumes the hidden Daily OHLC is ID1. Edit the formulas as needed to the correct ID# of the hidden Daily OHLC study Date Time Of Last Edit: 2013-11-28 19:37:41
|
| [2013-11-28 06:52:05] |
| TradingMarketProfile - Posts: 120 |
|
Yes cool it's working !! Thank you so much tomgilb Date Time Of Last Edit: 2013-11-28 08:17:17
|
| [2013-11-28 08:16:28] |
| TradingMarketProfile - Posts: 120 |
|
Oups something wrong (see picture)
Date Time Of Last Edit: 2013-11-28 08:21:59
|

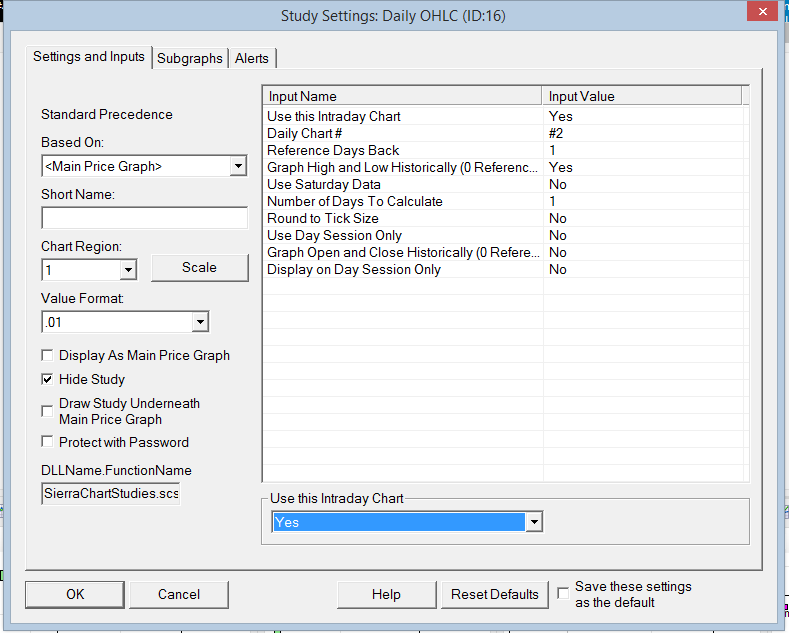

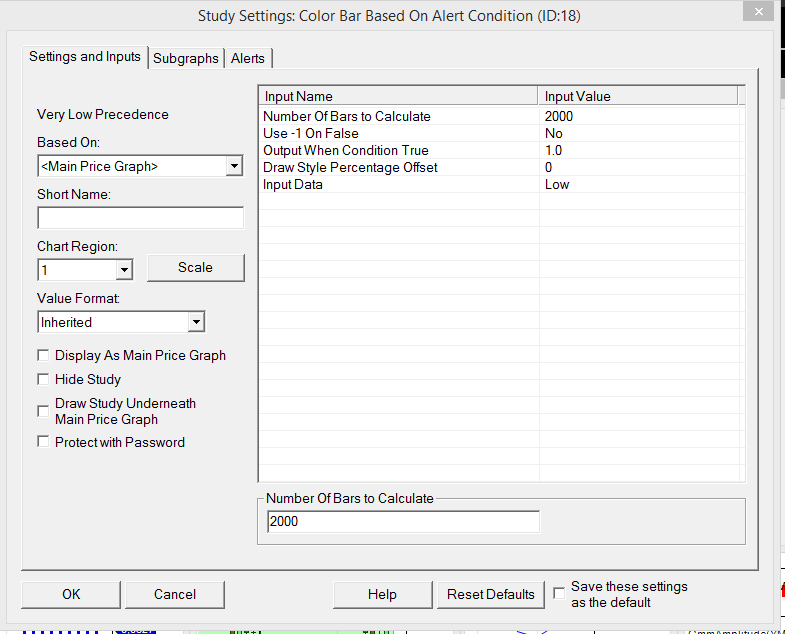

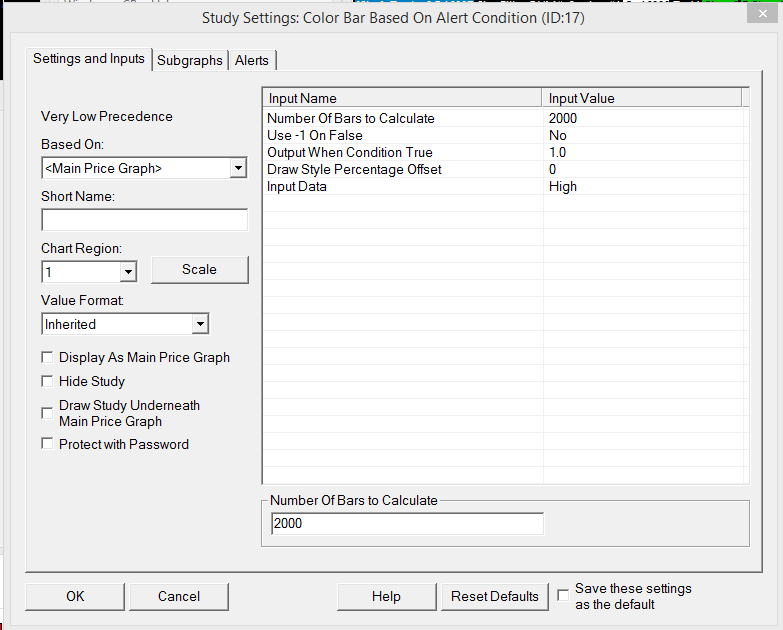

 settings OHLC.PNG / V - Attached On 2013-11-28 08:21:32 UTC - Size: 33.46 KB - 476 views settings color bar.PNG / V - Attached On 2013-11-28 08:21:43 UTC - Size: 26.43 KB - 470 views settings color bar2.PNG / V - Attached On 2013-11-28 08:21:53 UTC - Size: 26.95 KB - 425 views |
| [2013-11-28 18:15:06] |
| Sawtooth - Posts: 4120 |
|
You have some setting incorrect. I edited post #4 for clarity. Please review. I also changed the formulas so that you get marks on the first bar of the day. |
| [2013-11-28 18:36:21] |
| TradingMarketProfile - Posts: 120 |
|
i done your change but still the same, not working http://www.sierrachart.com/image.php?l=1385663768250.png |
| [2013-11-28 19:36:45] |
| Sawtooth - Posts: 4120 |
|
Use the attached Study Collection on a blank chart to see how it works. If you add it to a chart with existing studies, you'll need to edit the formulas to use the correct ID# of the hidden Daily OHLC study. Put the attached in your Sierra Chart \Data folder, and click on 'Point at all new daily HLs-' |
 Point at all new daily HLs-.StdyCollct - Attached On 2013-11-28 19:33:40 UTC - Size: 27.98 KB - 615 views |
| [2013-11-29 06:15:24] |
| TradingMarketProfile - Posts: 120 |
|
ok thanks...great :))
|
