Volume Profile Request

View Count: 137

[Page 1 of 1] First Page -- 1 -- Last Page

[2024-08-17 16:08:18] #1 [Go To First Post]
K-1 - Posts: 11
Hello, I am looking to create/find/alter a VP study which will do the following: - Extend all bars from start point to the far right edge of screen - Have different gradations of color representing high/low or increasing/decreasing volume zones - Have all the options for different colors of POCs, VAs, etc. I've attached an image that i found online which basically shows how Id like to get the study to present on the main graph but of course with other items such as price and MAs laid on top of it. Any help or direction would be appreciated. Thanks
0x Thank you
vector-abstract-grey-bright-background-with-horizontal-lines.jpg / V - Attached On 2024-08-17 16:04:50 UTC - Size: 29.71 KB - 55 views Attachment Deleted.

[2024-08-17 16:19:03] #2 [Go To First Post]
cesium - Posts: 85
sierras default vbp volume by price aka volume profile study does all of this if you want the bars to extend from the left all the way to the right, then youd do: Maximum volume bar width percentage = set to a number closer to 100 as opposed to 0 then color code volume bars based on percentage of POC to yes in subgraphs tab, you can do bullet 3, all the options for colors and line types are there
0x Thank you

[2024-08-17 17:16:01] #3 [Go To First Post]
K-1 - Posts: 11

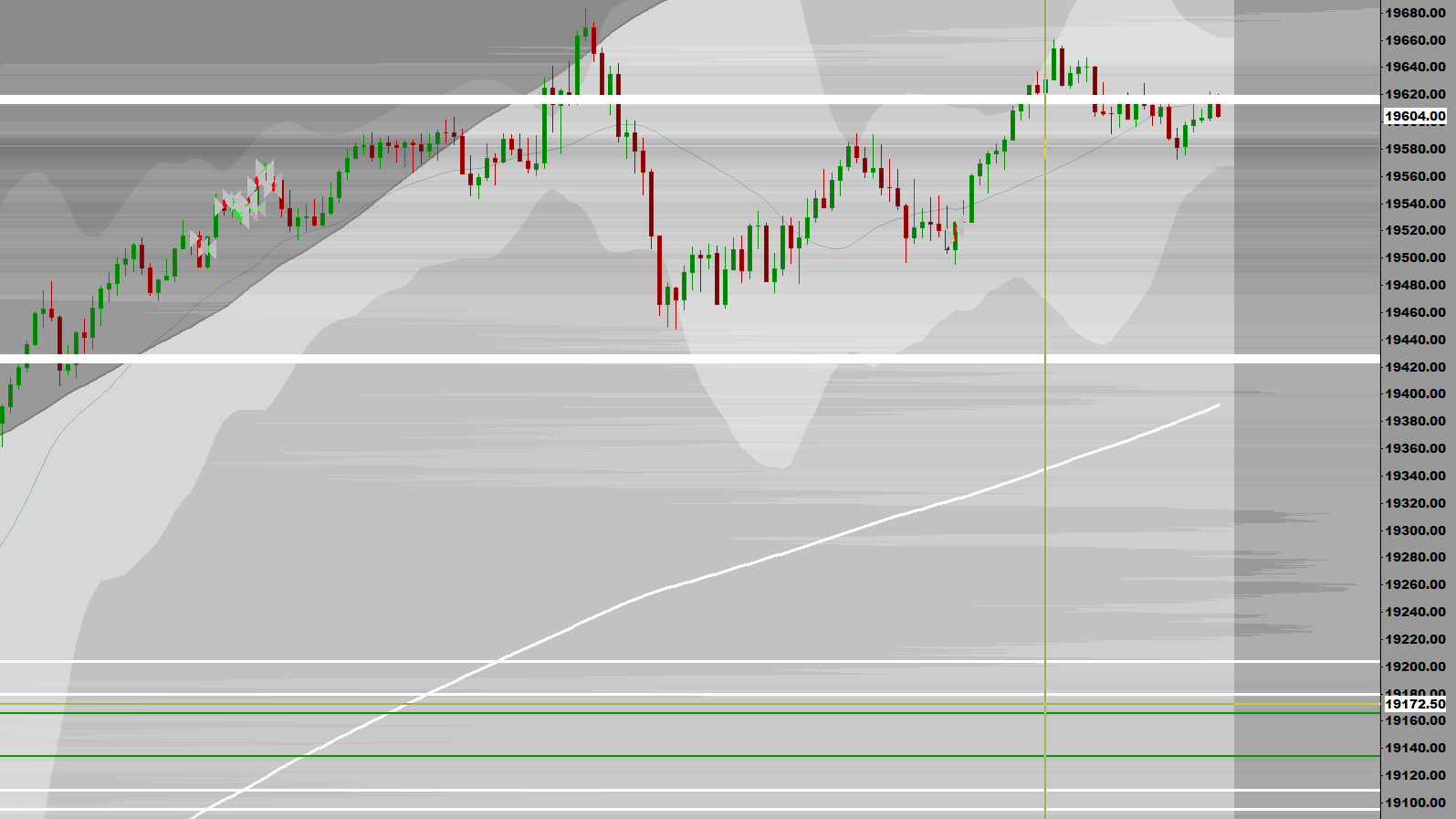

Thanks! I altered the gradation in the color settings and POCs etc however, however after changing the maximum volume bar width percentage to 100, I still don't have the bars extend off the window. I'd like to see each bar essentially as a ray. I aligned the profile to the right edge which helps but I still see jagged outline of the VP which because of the variations in grey tones, I'm looking to do away with. Thanks for your prompt reply! P.S. you guys, the support team, are amazing!
0x Thank you
Screenshot 2024-08-17 121320.png / V - Attached On 2024-08-17 17:15:07 UTC - Size: 61.78 KB - 50 views Attachment Deleted.

[2024-08-18 06:47:45] #4 [Go To First Post]
cesium - Posts: 85
looks like the value can go up to 500 from testing, support team would know the exact value, but I think its 500 max set *maximum volume bar width type* to window width from testing it looks like this will do what you want
0x Thank you
