TPO Volume Profile
View Count: 193
| [2024-08-09 18:05:06] |
| User131975 - Posts: 78 |
|
Hello, I would like to have it in my TPO chart so that I can see the volume profile for today's RTH session and a volume profile for every 30 minute period. I already have it that way, but unfortunately I also see the volume profile for all other periods, which I don't want. Is there any way I can do this? Thank you very much |

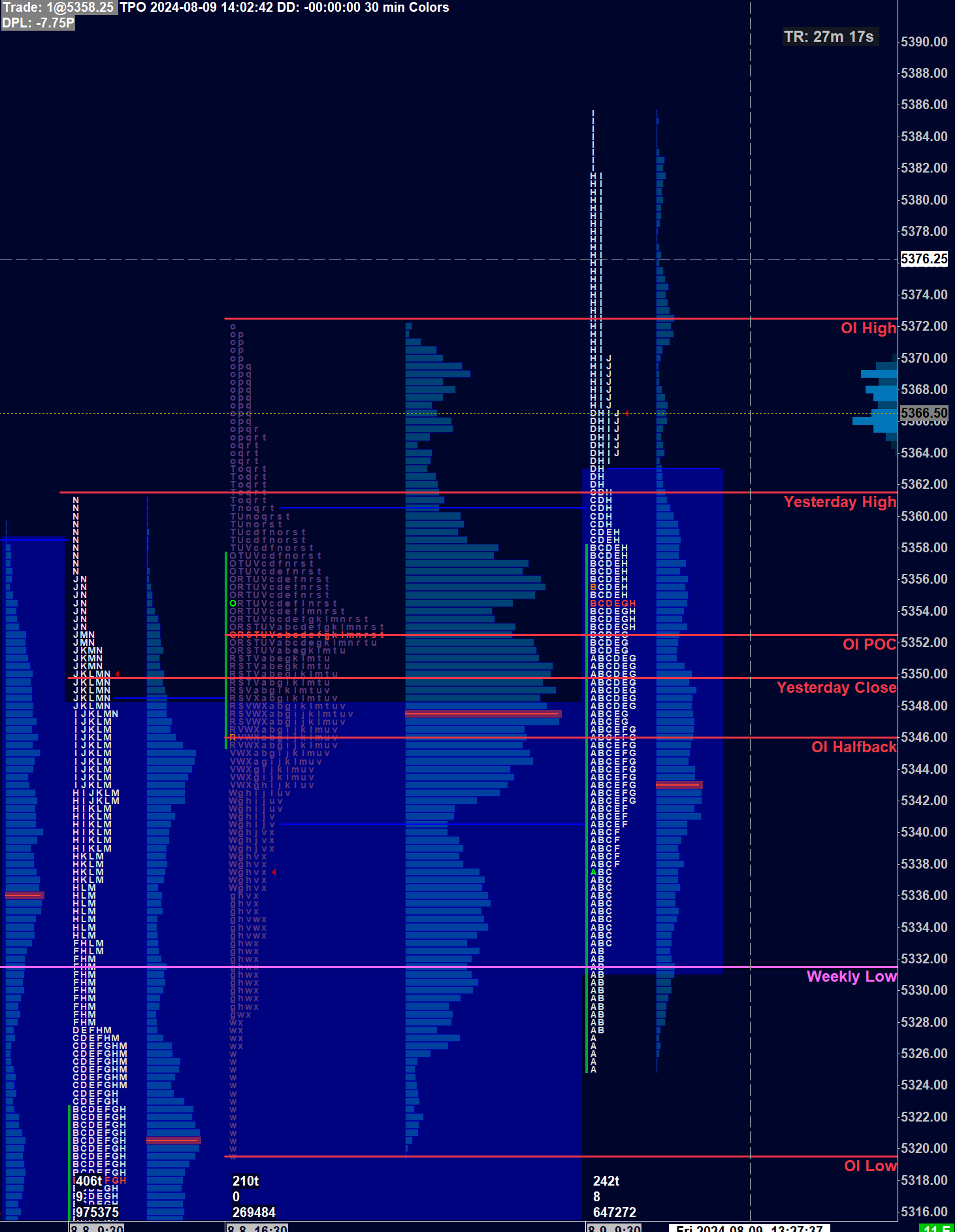

 Screenshot 2024-08-09 200430.png / V - Attached On 2024-08-09 18:04:57 UTC - Size: 259.4 KB - 38 views Attachment Deleted. |
| [2024-08-09 18:27:22] |
| John - SC Support - Posts: 36238 |
|
We are not understanding what exactly you are wanting, particularly in reference to "a volume profile for every 30 minute period". If you want just a single Volume by Price for the current RTH, then you would need to set this up as a profile that is independent from the TPO chart and is then right-aligned to the far right. Refer to the following example for how to set this up: Volume By Price Study: 30 Minute Volume Profile at End of TPO Profile Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-08-09 18:32:04] |
| User131975 - Posts: 78 |
|
I just want a Profile for the current RTH Session and a Profile for every 30 minute period on the TPO Chart.
|
| [2024-08-09 18:41:47] |
| John - SC Support - Posts: 36238 |
|
The RTH profile we gave you above. Keep in mind that with a TPO chart, you either have Volume Profiles that are the same as the TPO, or you have a separate volume profile that is right-aligned to the far right, and you can setup multiple profiles on the right. But unless the TPO period is 30 minutes, you can not get 30 minute volume profiles for all the data in the chart. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-08-09 18:44:51] |
| User131975 - Posts: 78 |
|
Yeah i dont want the 30 minute Profile for all Datas in the Chart. I Just want the CURRENT RTH Session Profile and the CURRENT 30 minute Profile. Thats exactly what iam searching for. Can you please help me to set this up or give me a guide? But I still have a problem. I already know how to display the volume profile for the entire RTH session, but since I always see the last ETH session separately, it is always included and I just don't understand how I can do it so that I only see the RTH session and not the ETH session included. |
| [2024-08-09 20:15:00] |
| John - SC Support - Posts: 36238 |
|
First of all, an example of how to setup a Volume by Price profile separate from, but on a TPO chart is given in Post #2. Follow that as a guide. For the 1 day RTH only session, you will need to set the "Volume Graph Period Type" to "Trading Day Start Time to End - Reset at Day Session". Refer to the following: Volume By Price Study: Trading Day Start Time to End - Reset at Day Session For the 30 minute profile set the "Volume Graph Period Type" to "One Period at End of Fixed Time Length" and set the time length to be 30 minutes. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-08-09 20:16:44] |
| User131975 - Posts: 78 |
|
Okay thank you I will try it! I already have the 30 minute VP. The only thing is the RTH Only Today VP Date Time Of Last Edit: 2024-08-09 20:26:18
|
